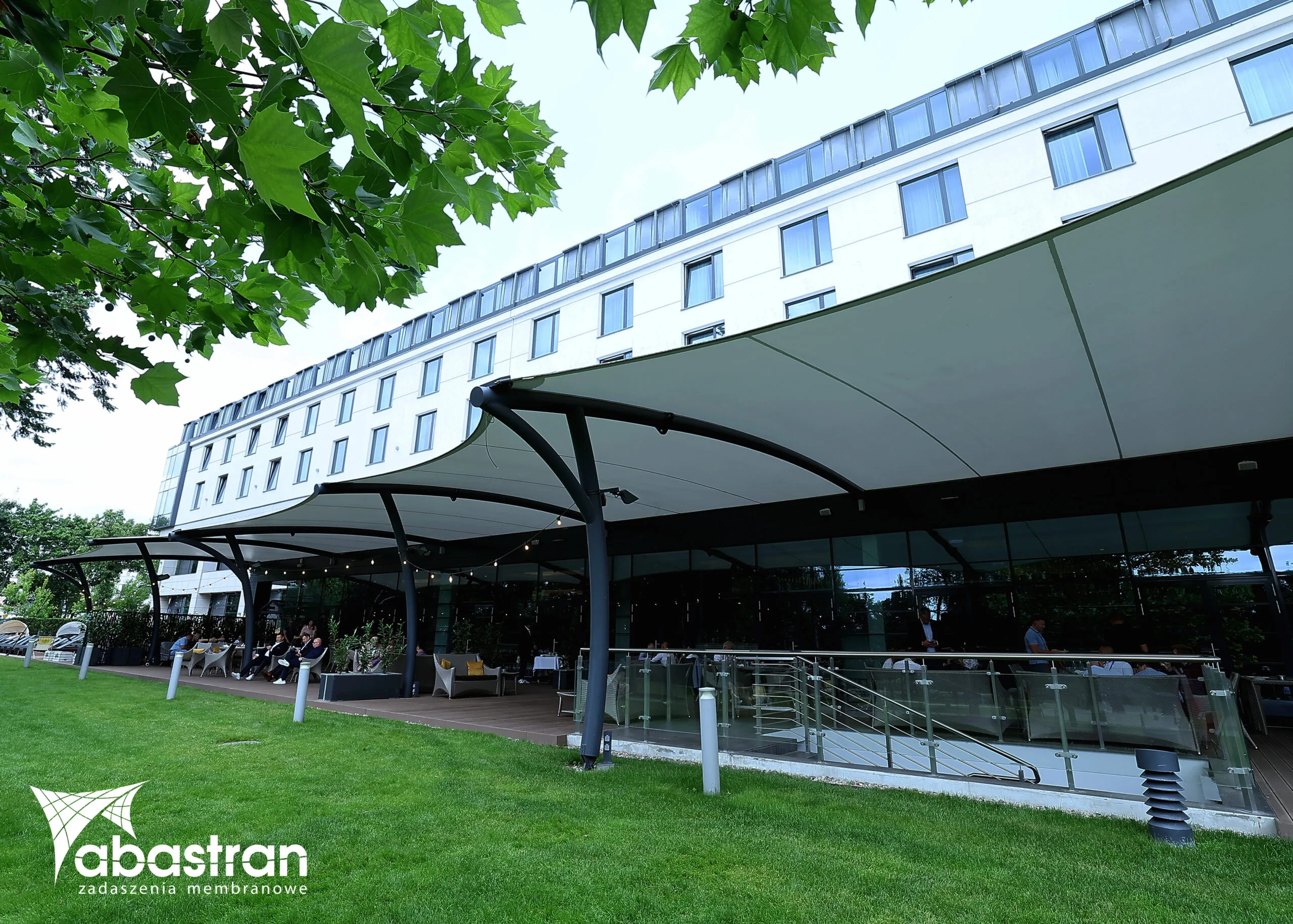

Project Details: Hilton Hotel Warsaw Terrace Canopy:

Year: 2017

Location: Warsaw

Area: 438 m2

Material: PVC membrane with PES fibers

Construction: Abastran Sp. z o. o.

Scope: Construction and Executive Design



In 2017 in Warsaw, at ul. Skalnicowa 21, the construction and executive project of roofing the terrace of the “Double Tree by Hilton Warsaw Conference Center & SPA” hotel was completed. The aim of this project was to create a functional and aesthetic roof that would increase the comfort of guests using the hotel terrace all year round.



The terrace roof has an area of ​​approximately 438 m2 and was designed as a year-round membrane roof, supported by steel frames. A PVC membrane with PES fibers was used for this purpose, which is resistant to weather conditions and ensures the durability of the structure. The roof structure was attached to the existing hotel structure using tension beams and placed on foundation footings. The maximum dimensions of the roof are 46.8 m x 11.53 m and the maximum height of the structure is approximately 5.09 m. The project also provides for a drainage system consisting of holes integrated in the structure.

Looking for an elegant and functional canopy for your terrace, restaurant, or commercial space? Explore our membrane structure solutions.

Project Spotlight: Amphitheatre Canopy, Biała Podlaska Palace & Park Complex:

Year: 2019

Location: Biała Podlaska, Poland

Area: 2007 m2

Material: Precontraint 1002 S2 Highly Transulcent (main membrane) and Valmex FR 650-2 (light bridge)

Construction:Abastran Sp. z o.o. z o. o.

General contractor:DOMBUD Sp. z o.o. z o. o.

Scope: Design of a steel structure, light bridge structure, structure for fastening ropes, design of the casing, assembly of the structure, delivery and assembly of the membrane along with ropes, rod ties and guy ropes



In 2019, an ambitious project to roof an amphitheater as part of the palace and park complex was completed in Biała Podlaska. The aim of the project was to create a modern, functional space that would allow the organization of various outdoor cultural and artistic events, regardless of weather conditions.



The roof of the amphitheater was designed as a cable-like steel structure, with tie rods being the central element. The steel structure consists of closed round profiles made of S355J2 steel, which ensures high durability of the structure. The materials used for the coating are Precontraint 1002 S2 Highly Translucent for the main membrane and Valmex FR 650-2 for the “light bridge”, which are characterized by high transparency and weather resistance. The project also included the installation of cables, bar tendons and guy wires, which together create a complex but aesthetically pleasing structure.

Seeking a comprehensive roofing solution for a major cultural or sports venue? Uncover the possibilities with Abastran’s advanced membrane structures.

Details of the Green Amphitheatre roofing project in Nowa Sól:

Year: 2018

Location: Park in Lubcin, Nowa Sól commune

Area: 85 m2

Material: Serge Ferrari PRECONTRAINT 902 S2, PVC

Construction: Abastran Sp. z o. o.

General contractor: PRO-INFRA Sp. z o. o.

Scope: design, structure assembly, membrane installation



The Green Amphitheater in Lubcin, Nowa Sól commune, is a unique project implemented in 2018, which fits into the picturesque surroundings of the Park at Lake Lubcińskie and historic churches. This project included the construction of a stage roof, which not only protects the performers from weather conditions, but also constitutes an attractive architectural element.



The roof was made of Serge Ferrari PRECONTRAINT 902 S2, PVC, which is known for its high resistance to UV, abrasion and weather conditions. The steel structure of the roof has the form of a saddle, which adds aesthetics and modernity to the entire structure. It stretches 14 meters wide, reaching a height of almost 5 meters from the ground, which provides ample stage coverage.

Planning to roof a stage or similar outdoor venue? Explore our range of membrane structures.

Project Details: Audience Canopy for the Bandshell in Praski Park:

Year: 2016

Location: Warsaw Praski Park

Material: Serge Ferrari Precontraint 1202 S2

General contractor: GPVT Pracownia Architekteniczna s.c.

Scope: Implementation of a construction project and a workshop project



The project was part of an extensive renovation of this historic site. An innovative approach to the design combined functionality with modern aesthetics, creating a space ideal for hosting outdoor cultural events.



Abastran’s canopy, contrasting in a modern way with the existing shell roof while forming a coherent whole thanks to its carefully shaped arch, was designed using Serge Ferrari Precontraint 1202 S2 PVC material, renowned for its durability and resistance to weather conditions. The five sail segments are not only an aesthetic solution, but also an effective one, providing excellent protection from both sun and rain. The size of the designed canopy is 27.8 by 26 metres, with a height reaching up to 11 metres.



Planning to modernize or build a cultural venue with stage roofing? Explore our range of stage and event canopies.

Year: 2017

Location: Lubliniec

Area: 33m2

Material: VALMEX® FR 1400 MEHATOP F1

Construction: Abastran Sp Z. O. O.

General contractor: Abastran Sp Z. O. O.

Scope: Design, delivery and installation of the “Phylium” roofing system



In 2017, in Lubliniec, next to the football pitch, a roofed playground called “Phylium” was built. This roof is part of modern system solutions developed by Abastran Sp Z. O. O., which are intended to provide protection against the sun and improve the aesthetics of public recreation areas.



“Phylium” is a 33 m² structure in the form of a four-point saddle sail. It is spread over four poles, two of which are higher and two lower, which gives the roof a dynamic and attractive look. The dimensions of the roof are 7.8 m by 7.8 m with a maximum height of 3.7 m. The material used for the production of the roof is VALMEX® FR 1400 MEHATOP F1, which is resistant to UV and weather conditions, which guarantees durability and safety of use.



This roof is ideal as a shading element on playgrounds where children spend a lot of time outside. Thanks to its structure and material, it provides protection against the harmful effects of sunlight and rain, while also being an interesting architectural element.

Details of the ETFE cushion project implementation:

Year: 2019

Location: Kędzierzyn – Koźle

Area: 102m2

Material: Guarniflon S.p.a. ETFEs

Construction: Abastran Sp Z. O. O.

General contractor: Abastran Sp Z. O. O.

Scope: Design implementation, delivery and installation of ETFE cushions, design, delivery and installation of an air supply system.



The project of making pillows from ETFE foil in the Activity Center – Wodne oKKo in Kędzierzyn-Koźle from 2019 is a modern example of the use of this technology in Poland. ETFE foil, although still relatively rare in Poland, is becoming more and more popular due to its unique properties, especially in facilities that require UV light transmittance, such as botanical gardens or swimming pools.

The ETFE foil used from Guarniflon S.p.a. is characterized by high durability and resistance to weather conditions. In the project in Kędzierzyn-Koźle, the foil was used to create two elongated pillows that are stretched on the steel roof frame of the building. This solution not only increases the aesthetic charm of the facility, but also ensures excellent lighting conditions inside.

ETFE cushions are a great solution for places where the maximum amount of natural light is important. Thanks to the high transparency of the foil, sunlight is effectively transmitted, which is particularly beneficial for swimming pools and other relaxation areas. Additionally, the air supply system keeps the pillows in appropriate tension, which guarantees their durability and appropriate shape.

Want to discuss your project with us? Check out the details of our ETFE structure offer.

Year: 2018

Location: Gliwice

Area: 168m2

Construction: Abastran Sp Z. O. O.

General contractor: Abastran Sp Z. O. O.

Scope: Design implementation, construction works, delivery and installation of membrane roofing.



In 2019, a membrane roofing project over the terrace of specialist clinics was implemented in the courtyard of the Clinical and Didactic Center in Łódź. The 420 m² roof was designed to create a comfortable and aesthetic space for patients and medical staff.



The roof has the shape of a double conical form, supported on internal supports, which gives it a modern and light look. The structure is located in the corner between the two walls of the building, which effectively uses the available space. From the façade side, the roof is anchored in points to the wall, and from the outside it is attached to two inclined columns, ensuring the stability and safety of the structure.



One of the key features of the roof is its illumination from below, which not only highlights its architectural values ​​after dark, but also creates a cozy atmosphere, conducive to relaxation for patients and staff.

Year: 2018

Location: Gleiwitz

Area: 168m2

Construction: Abastran Sp Z. O. O.

General contractor: Abastran Sp Z. O. O.

Scope: Design implementation, construction work, delivery and installation of membrane roofs.



Details of the walkway roofing project between shopping centers in Gliwice:

In 2018, a new Factory Gliwice Center was built in Gliwice next to the Auchan shopping center. To allow customers to move comfortably between the two shopping centers regardless of weather conditions, a covered connection point covered with a membrane was designed and built.



The roof of the connector with an area of ​​168 m² consists of seven steel frames, between which a single-layer membrane is stretched. What makes this structure unique is the use of different membrane mounting heights, which give the entire structure a complex and aesthetically pleasing spatial shape. Additional struts in the longitudinal direction and a rectangular framework at the intersection ensure additional stability and safety of the structure. Do you need a roofing connecting buildings? Check out our offer of membrane structures.

Year: 2021

Location: Poznań

Area: 225m2

Material: Verseidag B3760

Construction: Inmet Sp. Z. O. O.

General contractor: Abastran Sp Z. O. O.

Scope: Design implementation, construction works, delivery and installation of membrane mesh.



Details of the PVC mesh screen wall project in Poznań:

The PVC mesh curtain wall project in Poznań was implemented in 2021 as part of the renovation of the “Obornicka 337” Interior Gallery. This initiative was aimed not only at renovating the façade, but also at enriching it with modern architectural elements that improve the building’s aesthetics and functionality.



The 225 m² curtain wall was made of Verseidag B3760 PVC mesh, which is known for its durability and resistance to weather conditions. This mesh was installed as a pre-wall covering the main entrance to the building, which not only increases the comfort of users, but also constitutes an interesting decorative element.



The PVC mesh wall has a protective function, reducing the impact of external factors such as wind or rain, and also filters sunlight, which improves the comfort inside the gallery. Aesthetically, its modern design adds character to the entire facility, modernizing its appearance and making it more inviting and presentable. Looking for unusual facade solutions? Discover our capabilities in: designing membrane structures.

Year: 2021

Location: Starogard Gdański

Material: SERGE FERRARI – FLEXLIGHT ADVANCED 1002 – WHITE FLUORIZED 8636S2

Construction: Abastran Sp Z. O. O.

General contractor: Abastran Sp Z. O. O.

Scope: Design execution, construction work, delivery and installation of membrane roofs.



Details of the summer stage roofing project in Nowe Oblicze Park:

The project to build a summer stage in the “PARK NOWE OBLICZE” in Starogard Gdański, implemented in 2021, is an innovative solution with the aim of creating a new cultural space for the city’s residents. The stage was designed using modern materials and technologies, which ensures its functionality and aesthetic appearance.



For the construction of the summer stage, the SERGE FERRARI – FLEXLIGHT ADVANCED 1002 – WHITE FLUORINATED 8636S2 membrane was used, known for its exceptional weather resistance and excellent durability. The stage construction is based on two arched girders that were mounted on solid concrete foundations. This solution not only ensures the stability of the entire structure, but also gives the stage a modern and light look.



The membrane cover of the stage provides protection from sun and rain, which makes it possible to organize cultural events in different weather conditions. The white, fluorinated membrane also ensures excellent light diffusion, which is important when performing on stage. Are you interested in modern solutions for cultural spaces? Check out our offer: design of membrane structures.
